For Hire
Cable Installation Equipment
Please see below our installation equipment that are available for hire. These equipment are available to hire in the Sydney metro area for a daily rate. For regional areas, there is a per day hire rate plus travel cost. One week minimum hire including travel time is also available for interstate.
Please contact us direct for a quote. Email: tony@energyinfraservices.com.au or Phone: 0437 197 806.

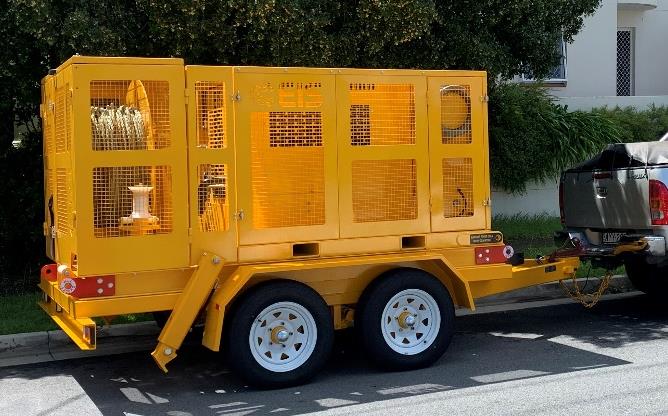

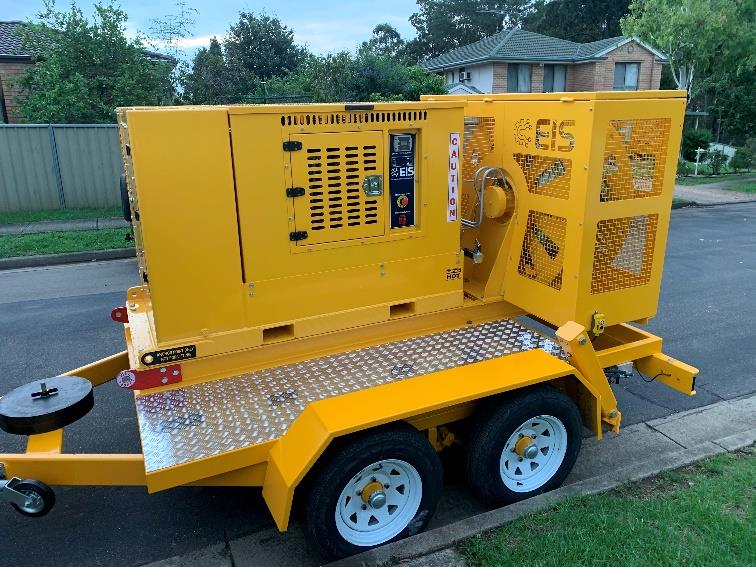

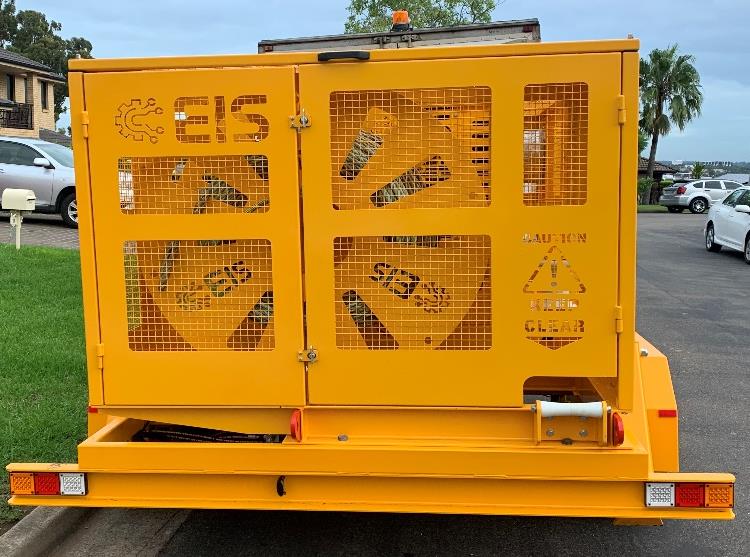

6 Tonne Diesel hydraulic capstan winch unit with storage drum.
Our 6 tonne capstan winch was designed and built in Australia to meet the following criteria:
- Complete hands off rope during winching operations,
- Eliminating operator injury from the rope,

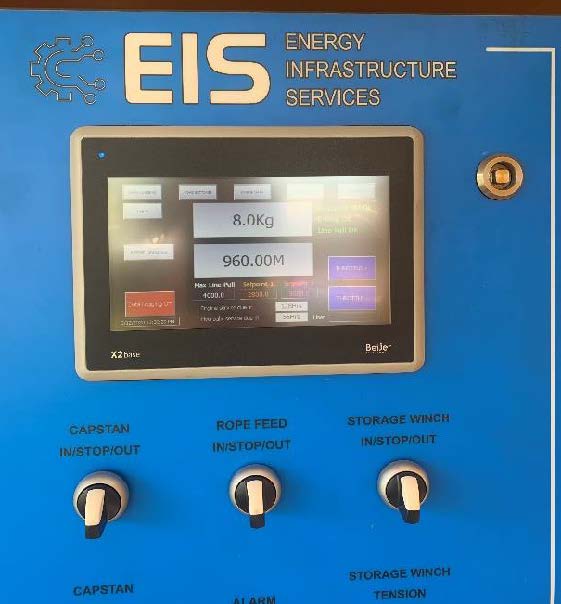

- All weight and distance to be clearly displayed to the operator at all times, and
- Data logged and downloadable to ensure compliance with cable manufacture's specifications at all times whilst being a single person operation.
- Rope storage drum is easily interchangeable to allow various rope types and sizes to be easily interchanged
- Unit is 150% bounded to cover all diesel & hydraulic oils spills at anytime and whilst refuelling operations.
- Maximum cable pulling tension can be set from 250kg through to 6,000 kg with a warning alarm at 75%, 90% then shut down at 100% this eliminates the possibility of over pulling.
- Maximum capstan line pull 58.86kN (6,000kg)
- Maximum capstan speed 12.7 rpm
- Maximum speed utilising 20mm rope 18 meters per minute
- Maximum storage drum 1100 meters at 20mm diameter
- Fully adjustable maximum tension.

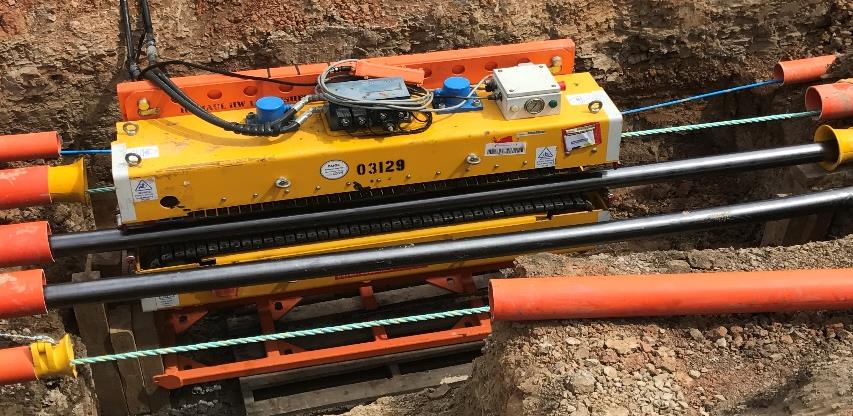

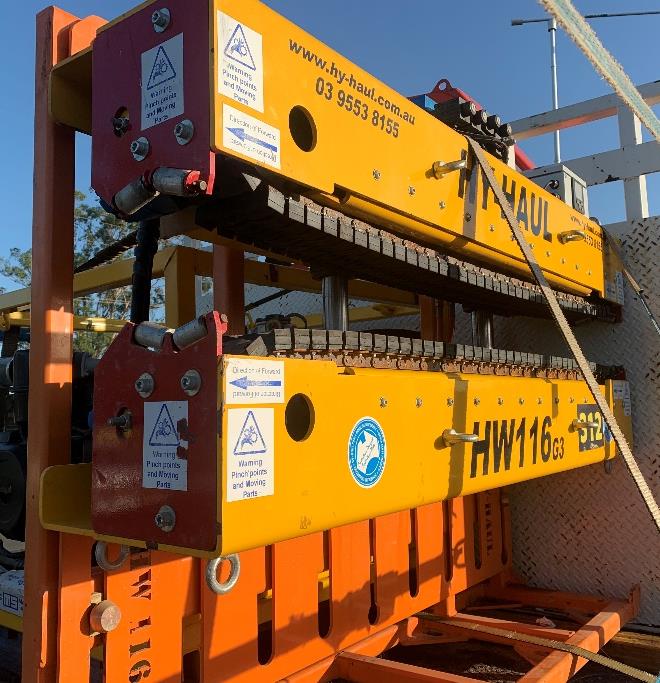

Hy-Haul model 116 cable pusher
Designed to sit horizontally on the ground, platform or on a truck bed and fitted with multiple anchor and attachment points, stability is assured. As a result, the HW 116 Cable Pusher can:
- Process heavy XLPE style cable straight off the drum aligning it for dropping into a trench or fitted to a CAT bay to assist midway along cable pulls,
- Reduce the pressure on the cable control of the HW 116 Cable Pusher. This can be achieved via Manual Control Valve, Pendant Control or Wireless Remote.
Control of the HW 116 Cable Pusher can be achieved via Manual Control Valve, Pendant Control or Wireless Remote to include the following:
- Single Cable diameters from 32 mm to 150 mm
- Trefoil Triple Cable of 32 mm diameter
- Up to 20 mts/minute speed
- Line force potential of 13 Kn and fully adjustable
- Manual valve control, electric pendant or wireless remote control options
- Diesel, petrol or electric power units available
